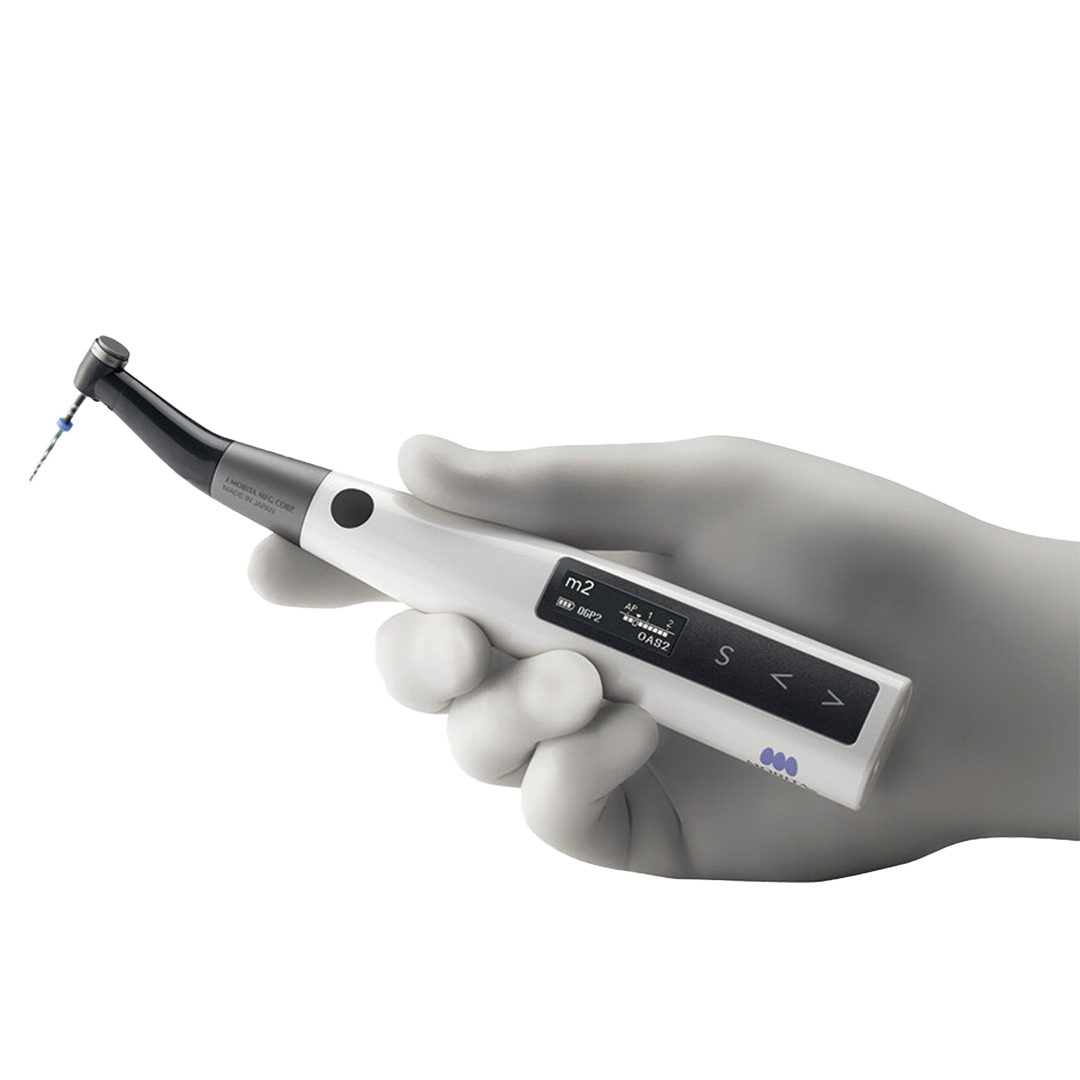

Tri Auto ZX2+ is equipped with a new generation reciprocating drive, OGP2, that greatly reduces the chance of a file breaking in the canal. This innovative motor can be used for patency, glide path, and shaping, allowing you to finish treatment safely and in less time. Additionally, with no limits on file size or cutting direction, your current file system is compatible.
OGP2 (Optimum Glide Path 2) Reduces the Chance of File Breakage
- OGP2 dramatically reduces the chance of breaking files due to its new and innovative reciprocating motion.
- Evenpatency using a #10 scout file is possible.
- Notoriously difficult patency by hand filing can now be achieved by endo motor
Rotation
- Its intelligent motion reduces file binding and, when it does occur, helps prevent the file from breaking in the canal
Maintains the Root Canal Shape
- Even with curved or narrow root canals, OGP2 allows you to provide treatment that maintains the original root canal shape
Handles Patency, Glide Path, and Shaping Using Just One Mode
- From a #10 scout file, to the widest size availalbe, the Tri Auto ZX2+ handles any CW/CCW file all in one mode.Patency, glide path, and shaping can all be performed with OGP2, allowing you to focus on treatment rather than settings
OTR (Optimum Torque Reverse) for Efficient Shaping
- The Tri Auto ZX2+ features the innovative OTR mode for shaping that combines the cutting efficiency of continuous rotation and the safety of reciprocation. When the load on the file exceeds the set value, the device rotates counter-clockwise at a fixed angle, contributing to shorter treatment times while reducing the possibility of file breakage. You can also modify the angles for cutting &
reversing freely to suit your needs.
New OTR CCW Mode for Reciprocating Files
- The new OTR CCW mode improves cutting efficiency of your CCW files
The integrated apex locator allows you to perform treatment while continuously monitoring the position of the file
Specifications:-
Apex location
- OGP2 (Optimum Glide Path2)
- OGP (Optimum Glide Path)
- OTR (Optimum Torque Reverse)
- OAS (Optimum Apical Stop)
- OAS2 (Optimum Apical Stop2)
- Auto Start / Stop, Auto Apical Reverse
- Auto Apical Stop, Apical Slow Down
- Torque Slow Down, Apical Torque Down
- Auto Torque Reverse
Accessories:-
- Tester, LS OIL
- Power Plugs (one each of 4 types)
- Probe Cord (0.75 m)
- File Holder, Contrary Electrodes
- HP Protective Sleeve Type A
Handpiece
- Free Running Operation
- Speed: 100 – 1000 rpm
- Torque: 4 Ncm or more
- Battery: Lithium-ion battery (DC 3.7 V)
- Weight: Approx. 140 g (including battery and contra angle)
Battery Charger
- Rated Input Voltage: DC 5V
- Rated Input Current: 2.4 A
- Weight: Approx. 280 g (AC adapter not included)
AC Adapter
- Rated Input Voltage: AC100 - 240 V
- Rated Input Frequency: 47 - 63 Hz
- Rated Input Current: 0.4 A
